Brand Name : Silk Road
Model Number : S-TCS-YG 120 Sim Card
Certification : ATEX, CNEX, ISO9001
Place of Origin : China
MOQ : 1 Set
Price : Negotiable
Payment Terms : L/C, T/T, Western Union
Supply Ability : 1000000 Sets per month
Delivery Time : 5-8 work days
Packaging Details : Standard Carton Pack, Each Set Packed in 4 CTNS
Product Name : LPG Filling Scale
Rated Power &Frequency : 220V 50/60Hz
Division : 50G
Capacity : 2Kg-120Kg
Available Gas : LPG, Industrial Gas
Accuracy : III
Pressure : 0~1.6Mpa
Anti Explosion Grade : Ex ib IICT4 Gb
Sim Card Function : With

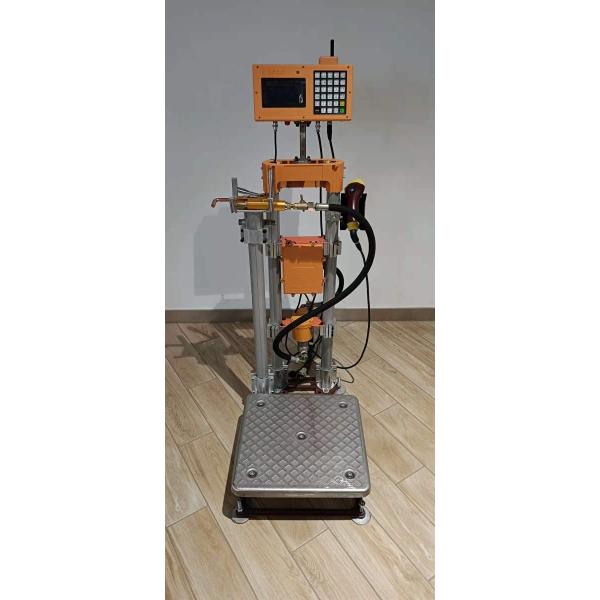

Electronic Ex-proof LPG Filling Scale With Sim Card Module Wireless Communication
The semi-automatical Filling scales with Sim Card module and cyinder tracking system, it could transfer data via Sim Card directly, no need WIFI, communication devices any more... Therefore have to meet high accuracy requirements for small filling stations to save cost and easier operation in the filling plants or stations...Within the filling process, weighing and filling are usually undertaken at great speed. The LPG gas have to be weighed during the process itself, at which point there is always some product in the air between the feeding device and container base. To obtain the precise results desired, special algorithms and procedures exist which enable rapid filling and attain a highly accuracy, it is belong to III, the division is 50g.
| Performance parameters | |
| Module | S-TCS-YG-120 Sim Card |
| Accuracy | III |
| Min. & Max. weighing | 2KG-120KG |
| Certificates | CNEX, ATEX, ISO9001 |
| Div. | 50g |
| Operating pressure | 0~1.6Mpa |
| Suitable gas | LPG |
| Ex-proof | Ex ib IICT4 Gb |
| Power Supply | 220V |
| Rated Frequency | 50/60Hz |
Detailed spare parts of LPG filling scale, including:
Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,
scale platform, scanner and holder, seals



Application in Africa Company:

The process of filling:
1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

2. Open the valve(pressure handle) and start filling

3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.

|
|

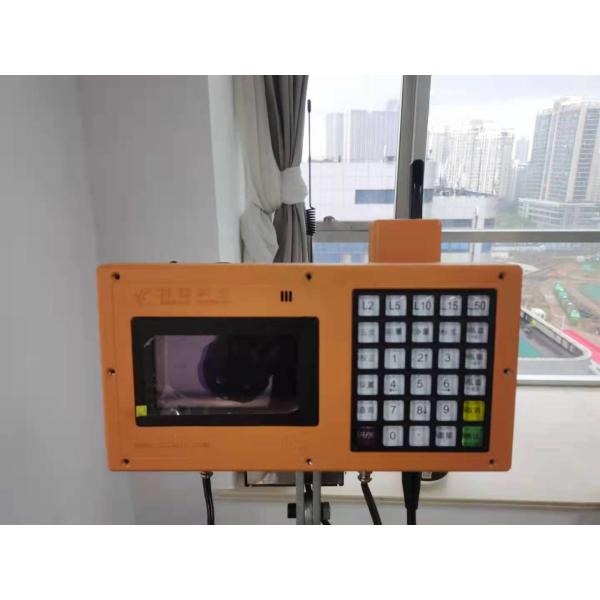

Wireless Communication Electronic LPG Filling Scale With Sim Card Module Images |
